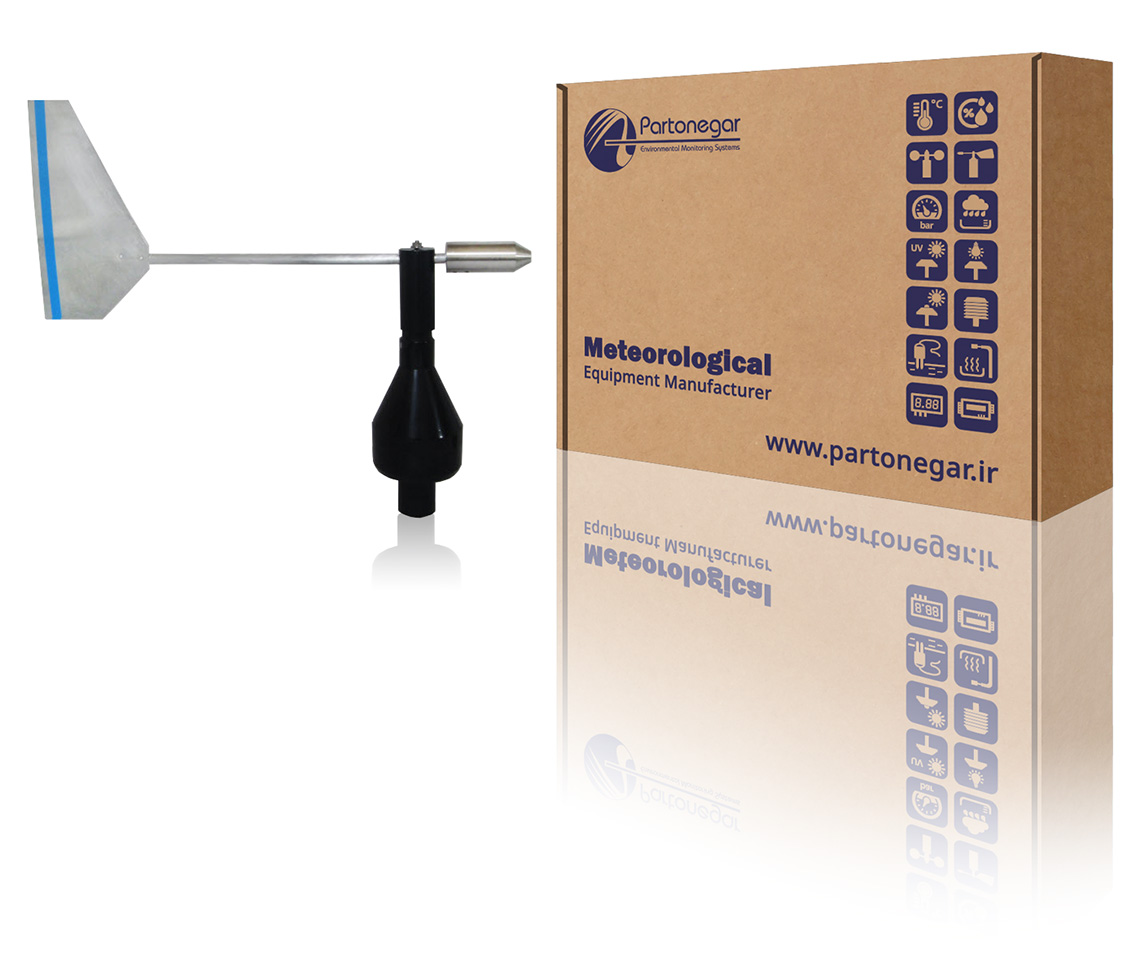

Wind Direction Sensor
(Model WD740)

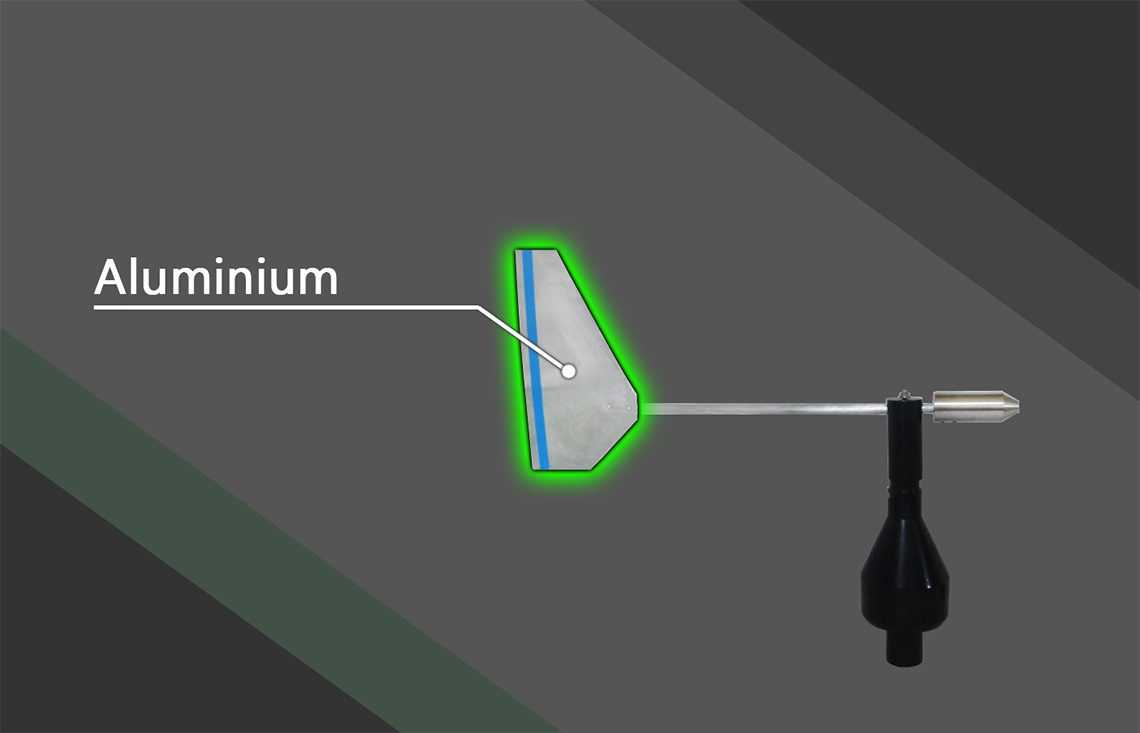

WD740i wind direction sensor with suitable mechanic and aluminum body. The most output is exist. It has a sensor for activating the body heater on cold season.



Specification
Protection IP IP65
Operation temperature -20 to +70
Operating range 0 to 360 D

Output

Digital (Frequency)
RS232, RS485
0~2V, 0~5V
0~20mA, 4~20mA

Power supply

35mA at 12VDC

For heater 150mA at 12VDC

Base diameter

35mm
